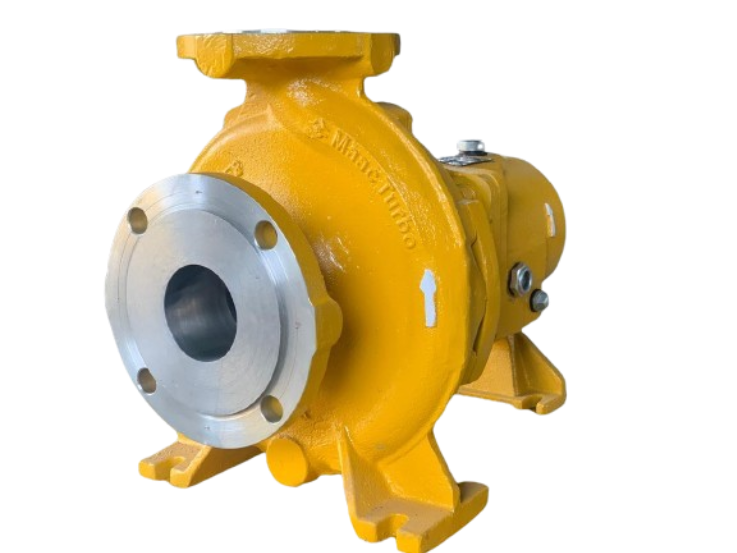

An end suction centrifugal pump moves fluid by using a rotating impeller to create centrifugal force. Fluid enters the pump axially at the “eye” of the impeller, where it is accelerated outward and its velocity is converted into pressure within the volute casing. This pressurized fluid is then discharged at a 90-degree angle through the outlet.
- End suction back pull out Type centrifugal Pump
- Capacity: up to 1100 m3/hr
- head: up to 150 meter
- size: 25mm to 300mm
- Speed: up to 3500 rpm
- Temperature: up to 350 °C
- MOC: CI, CS, SS 304 / 316, SS 304 L / 316 L, Alloy 20, Hast Alloy B or C , CD4MCU, etc….
Centrifugal process pumps are used in following applications and Industries:
- Hot and Cold Water Circulation
- Thermic Fluid Boiler
- Sugar Plants
- Solvent Transfer
- Marine/Ports
- Cooling Towers Installation
- Heat Exchanger
- Textile Industries
- Food Industries
- Paper Industries
- Chemical Industries
- Seawater and in many more industries
- Close-coupled pumps manufactured fully in compliance with DIN EN 22858/ISO 2858
- Radially split single-casing pumps with flanged connections for easy maintenance
- Horizontal end suction pump with vertical discharge line and a centre alignment to ensure efficient fluid transfer
- End suction centrifugal pumps with Close, Open, and Semi-Open impellers to match different applications.
- Grease and Flooded oil lubricated bearings with our Frame-mounted pumps
- Our back pull-out pumps are equipped with Gland Packed / mechanical seal for increased adaptability.
- Back Pull-Out design for effective and cost-efficient maintenance.
- Optimum Efficiency- Maximum output for a minimum price!
- Various materials of construction available for various application needs, promising a versatile, reliable, and adaptable pump.
- Mechanical seal for long-lasting durability
- Compact design for effective space utilization and enhanced functionality.
- Testing Standard: ISO5199, HI standards
- Construction standard: ISO2858
- Single Mechanical Seal is suitable for all the models in this segment ensuring extreme user-friendliness in our end suction centrifugal pumps
- Manufacturer standard Double mechanical seal is possible in all the models for robust and reliable seals.
- API mechanical seal can be offered according to the size of the Inline pump.
- Oil Lubricated for thicker lubrication and easy maintenance
- Stainless Steel SS316
- Stainless Steel SS304
- Duplex Stainless Steel
- Super Duplex Stainless Steel
- Nickel Alloys
